THA-A1

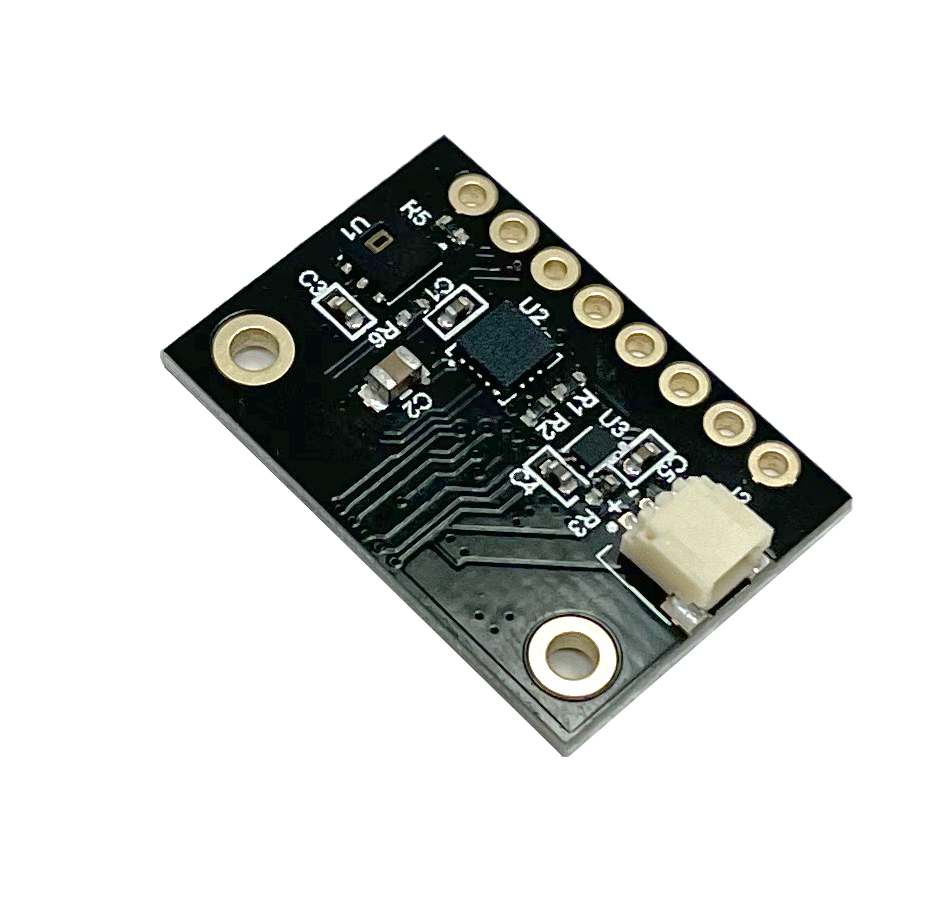

SigSense Intelligent IoT THA Sensor Add-on
SigSense Temperature, Humidity and Accelerometer (THA) add-on interfaces with SigCell, SigLRN, and SigFi to provide common sensors and to complete the solution. Low cost SigSense sensor boards allow for an out of the box solution, or the reference design files allow rapid adaptation to a custom solution. Designed for the low profile connector (LPC) SigSense THA module allows custom configuration of THA reports, as well as threshold reporting.
- Combine with Signetik core modules for rapid development of IoT end nodes
- Uses the regulated power from the Signetik core modules
- Power connector for using a battery pack
- Simple 2-layer board for rapid design changes and production
Functionality
- Relative Humidity, Temperature
- Acceleration
- Digital output
- Free-fall and motion detection
- +/-2g to +/-16g dynamically selectable full scale
Features
- Small Size – 25 mm x 20 mm
- Fully calibrated
- Low power consumption
- Simple 2 layer PCB for sensors adn power input
Intelligence
- Interface to Signetik Intelligent IoT products
- Draws power from the core modules
- Can be put to sleep using GPIO from core modules
Protocols
- I2C
- GPIO
- Battery input
- Regulated 3.3V from core modules
Low cost sensor module can be used as-is, for prototyping, or modified for your sensors!
